Characteristic
Microminiature： 15.6×15.2×16.5(mm) 125℃ of operating ambient temperature 2.8mm of Flat quick connection terminal Compliance to Rohs、ELV Directive
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: CMA57
- Commodity ID: C-006
- 触点形式: A- 1 Form A
- 触点负载: 12V:20A 14VDC 24V:15A 28VDC
- 线圈功率: Nominal Coil Power: 0.95W Nominal Coil Power(With Resistor): 1.1W
Microminiature： 15.6×15.2×16.5(mm) 125℃ of operating ambient temperature 2.8mm of Flat quick connection terminal Compliance to Rohs、ELV Directive
-

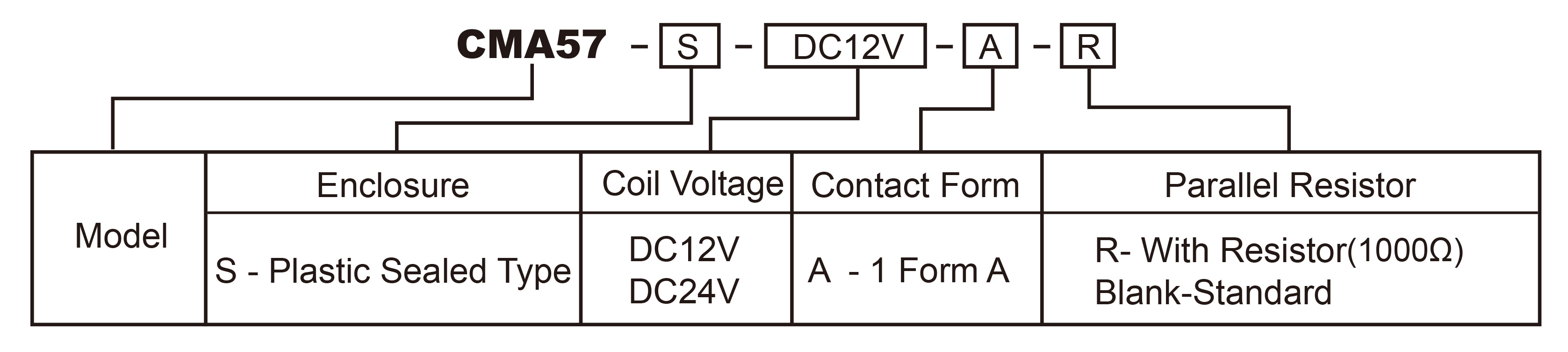

Naming rules
-
Specifications
CONTACT DATA
Contact Form
A- 1 Form A
Contact Material
Ag Alloy
Contact Rating
12V:20A 14VDC
24V:15A 28VDC
Contact Resistance
Max.50mΩ
Load
Max.Continous Current
20A
Max.Switching Current
Make:100A
Break:30A
Min.Switching Load
6VDC 1A
Life
Electrical
100,000 operations
Mechanical
1,000,000 operations
COIL DATA
Nominal Coil Power
0.95W
Nominal Coil Power(With Resistor)
1.1W
GENERAL DATA
Insulation Resistance
Min.100MΩ 500VDC
Dielectric Strength
Between open contacts
550VAC,50/60Hz,1 min
Between coil and contacts
550VAC,50/60Hz,1 min
Operate Time
Max.10ms
Release Time
Max.10ms
Operating Temperature
-40C to +125C
Humidity
5~85%RH
Shock Resistance
196m/s2(20g)
Vibration
Resistance
10Hz~40Hz,1.27mm Double Amplitude
40Hz~70Hz,49m/s (5g)2
70Hz~100Hz,0.5mm Double Amplitude
100Hz~500Hz,98m/s (10g)2
Weight
10g
-

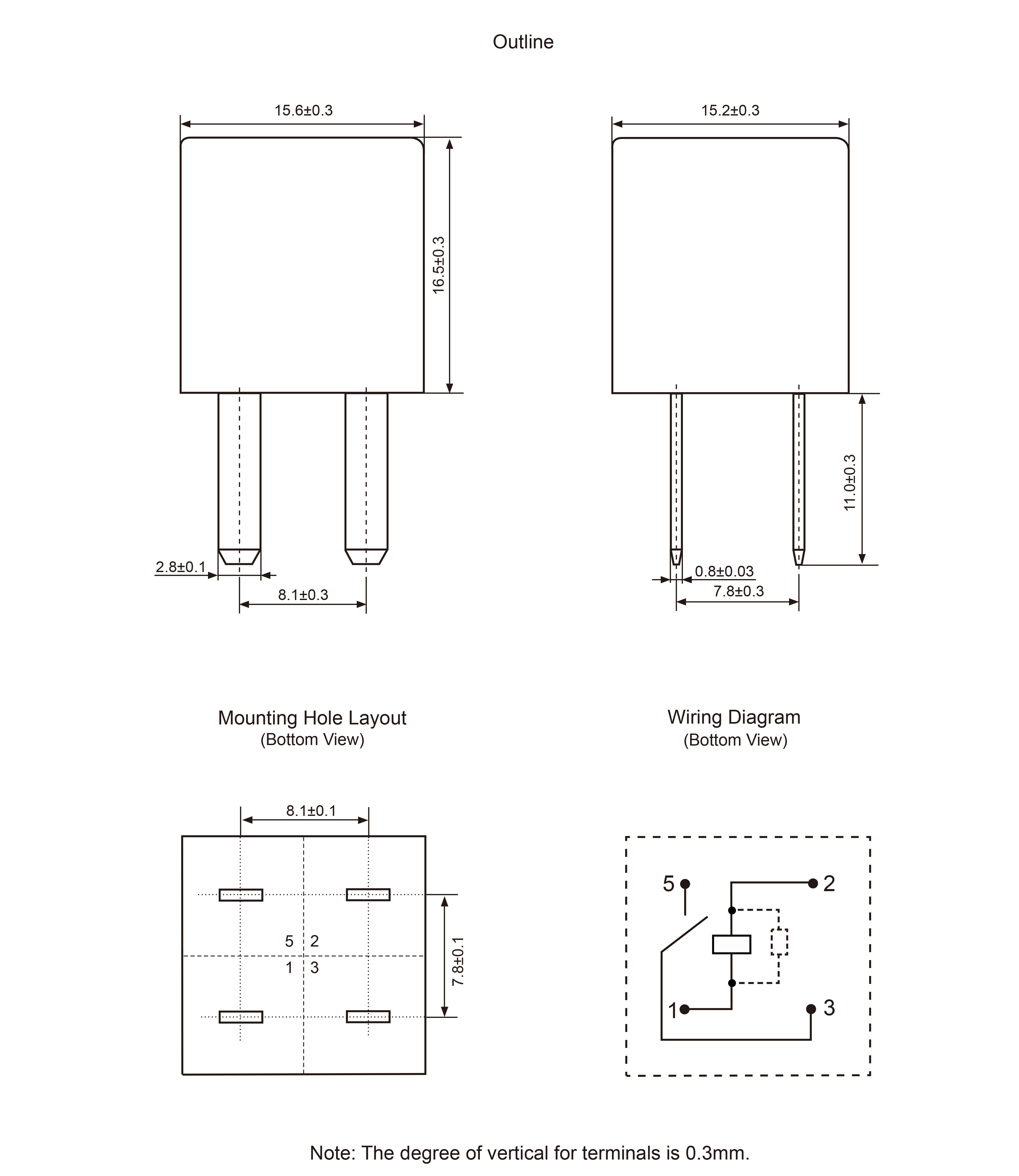

Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
CMA57
100pcs/tube
369×334×233
1000/box
12.0
13.0
- Characteristic curve
- Coil Specification Table
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
- Commodity name: CMA57
- Commodity ID: C-006
- 触点形式: A- 1 Form A
- 触点负载: 12V:20A 14VDC 24V:15A 28VDC
- 线圈功率: Nominal Coil Power: 0.95W Nominal Coil Power(With Resistor): 1.1W
Microminiature： 15.6×15.2×16.5(mm) 125℃ of operating ambient temperature 2.8mm of Flat quick connection terminal Compliance to Rohs、ELV Directive
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
A- 1 Form A
Contact Material
Ag Alloy
Contact Rating
12V:20A 14VDC
24V:15A 28VDC
Contact Resistance
Max.50mΩ
Load
Max.Continous Current
20A
Max.Switching Current
Make:100A
Break:30A
Min.Switching Load
6VDC 1A
Life
Electrical
100,000 operations
Mechanical
1,000,000 operations
COIL DATA
Nominal Coil Power
0.95W
Nominal Coil Power(With Resistor)
1.1W
GENERAL DATA
Insulation Resistance
Min.100MΩ 500VDC
Dielectric Strength
Between open contacts
550VAC,50/60Hz,1 min
Between coil and contacts
550VAC,50/60Hz,1 min
Operate Time
Max.10ms
Release Time
Max.10ms
Operating Temperature
-40C to +125C
Humidity
5~85%RH
Shock Resistance
196m/s2(20g)
Vibration
Resistance
10Hz~40Hz,1.27mm Double Amplitude
40Hz~70Hz,49m/s (5g)2
70Hz~100Hz,0.5mm Double Amplitude
100Hz~500Hz,98m/s (10g)2
Weight
10g
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
CMA57
100pcs/tube
369×334×233
1000/box
12.0
13.0
- Characteristic curve
