HCP1

Category:

Characteristic

Miniature relay with high switching contact capacity, 20A/250VAC Dielectric strength of 4500V between coil and contacts Ideal for switching compressor and inverter loads Available in both PCB and quick connect terminals Applications: Air conditioners, refrigerators, OA equipment, etc S

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

Authentication
- Commodity name: HCP1
- Commodity ID: B-003
- 触点形式: 1 Form A, 1 Form C
- 触点负载: Resistive：12A 250VAC/30VDC Inductive ：5A 250VAC Cosφ=0.4
- 线圈功率: Nominal Coil Power: 400mW
Miniature relay with high switching contact capacity, 20A/250VAC Dielectric strength of 4500V between coil and contacts Ideal for switching compressor and inverter loads Available in both PCB and quick connect terminals Applications: Air conditioners, refrigerators, OA equipment, etc S

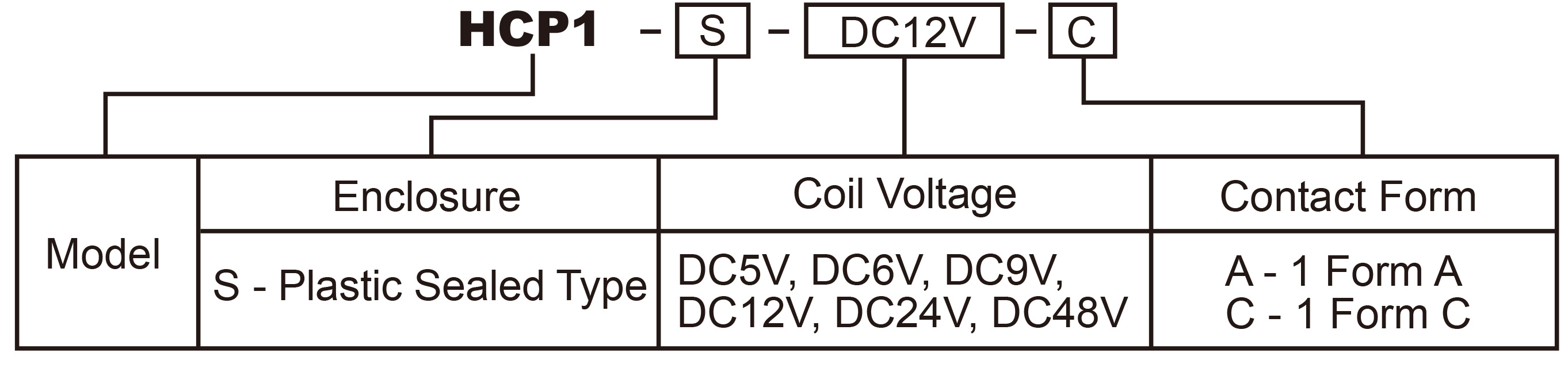

Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A, 1 Form C
Contact Material		Ag Alloy
Contact Rating		Resistive：12A 250VAC/30VDC Inductive ：5A 250VAC Cosφ=0.4
Contact Resistance		Max. 100mΩ (6VDC 1A)
Load	Max. Switching Voltage			440VAC/120VDC
	Max. Switching Current			12A
	Max. Switching Power			3,000VA, 360W
	Min. Switching Load			5VDC, 100mA
Life	Electrical		100,000 operations
			50,000 operations (Inductive: Cosφ=0.4, L/R=7ms)
	Mechanical		20,000,000 operations

COIL DATA

Nominal Coil Power

400mW

GENERAL DATA

Insulation Resistance		Min 1000MΩ 500VDC
Dielectric Strength	Between open contacts		1,000VAC, 1min
	Between coil and contacts		5,000VAC, 1min
Operate Time		Max. 10ms
Release Time		Max. 5ms
Operating Temperature		-40C to +85C
Humidity		35~95%RH, +40C
Shock Resistance	Endurance	1,000m/s
	Misoperation	100m/s
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 13.00g

Note: The above values are initial values.

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

产品型号	内包装方式	纸箱规格长× 宽× 高(mm)	总数量(只)	净重(Kg)	毛重(Kg)
HCP1	25只/管	388×360×154	1000/箱	13.0	14.9

Characteristic curve
Coil Specification Table

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

- Commodity name: HCP1
- Commodity ID: B-003
- 触点形式: 1 Form A, 1 Form C
- 触点负载: Resistive：12A 250VAC/30VDC Inductive ：5A 250VAC Cosφ=0.4
- 线圈功率: Nominal Coil Power: 400mW
Miniature relay with high switching contact capacity, 20A/250VAC Dielectric strength of 4500V between coil and contacts Ideal for switching compressor and inverter loads Available in both PCB and quick connect terminals Applications: Air conditioners, refrigerators, OA equipment, etc S
Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A, 1 Form C
Contact Material		Ag Alloy
Contact Rating		Resistive：12A 250VAC/30VDC Inductive ：5A 250VAC Cosφ=0.4
Contact Resistance		Max. 100mΩ (6VDC 1A)
Load	Max. Switching Voltage			440VAC/120VDC
	Max. Switching Current			12A
	Max. Switching Power			3,000VA, 360W
	Min. Switching Load			5VDC, 100mA
Life	Electrical		100,000 operations
			50,000 operations (Inductive: Cosφ=0.4, L/R=7ms)
	Mechanical		20,000,000 operations

COIL DATA

Nominal Coil Power

400mW

GENERAL DATA

Insulation Resistance		Min 1000MΩ 500VDC
Dielectric Strength	Between open contacts		1,000VAC, 1min
	Between coil and contacts		5,000VAC, 1min
Operate Time		Max. 10ms
Release Time		Max. 5ms
Operating Temperature		-40C to +85C
Humidity		35~95%RH, +40C
Shock Resistance	Endurance	1,000m/s
	Misoperation	100m/s
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 13.00g

Note: The above values are initial values.

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

产品型号	内包装方式	纸箱规格长× 宽× 高(mm)	总数量(只)	净重(Kg)	毛重(Kg)
HCP1	25只/管	388×360×154	1000/箱	13.0	14.9

Characteristic curve
Coil Specification Table
