AC6T

Category:

Power relay

Inquiry Download

Characteristic

超小型继电器尺寸:20.3×10.0×11.4(mm) 高灵敏度继电器触点形式:二组转换

Authentication
Naming rules
Specifications

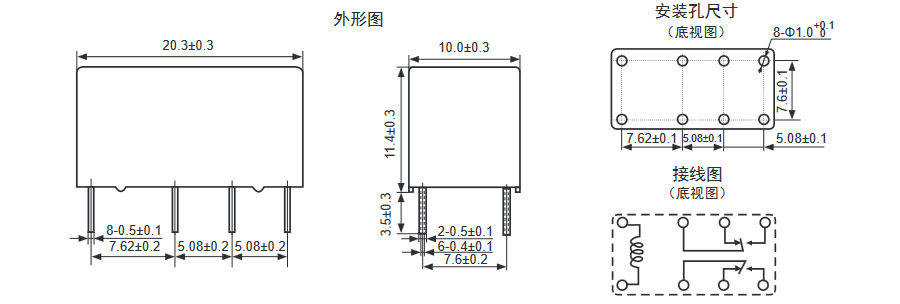

Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications

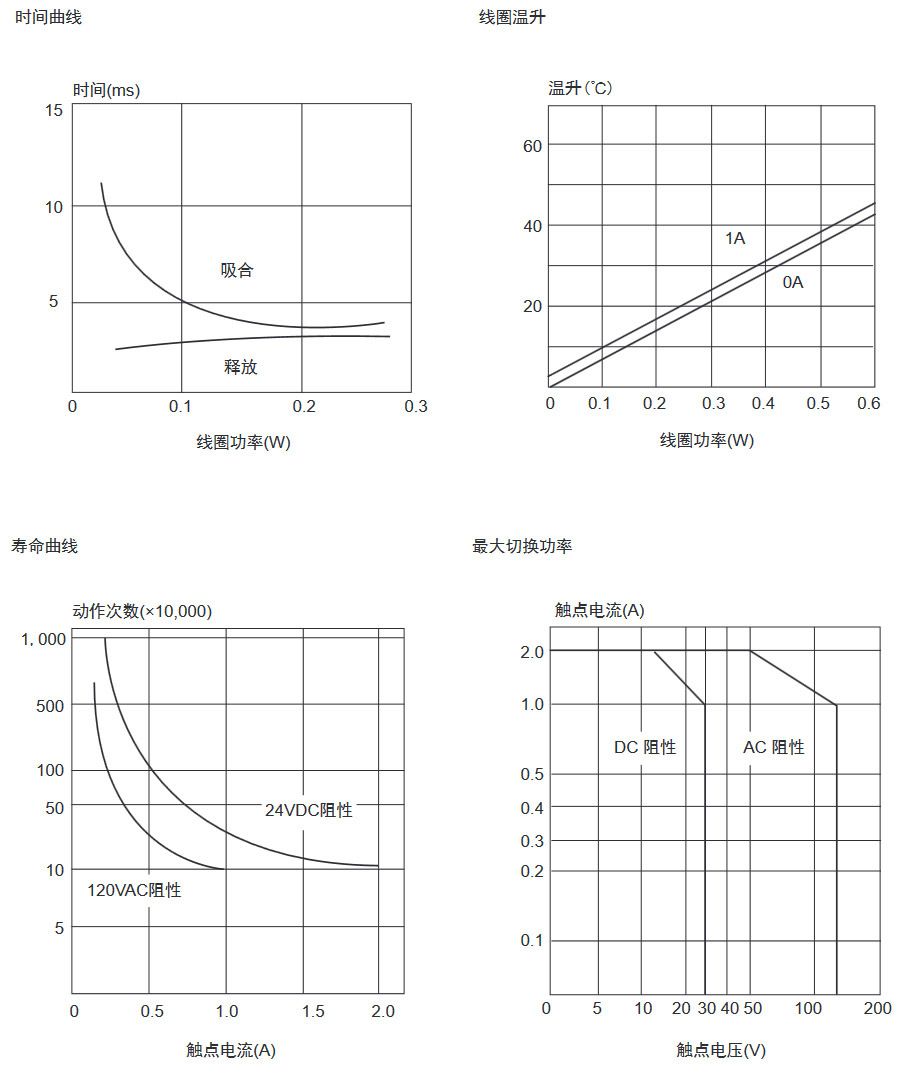

Characteristic curve

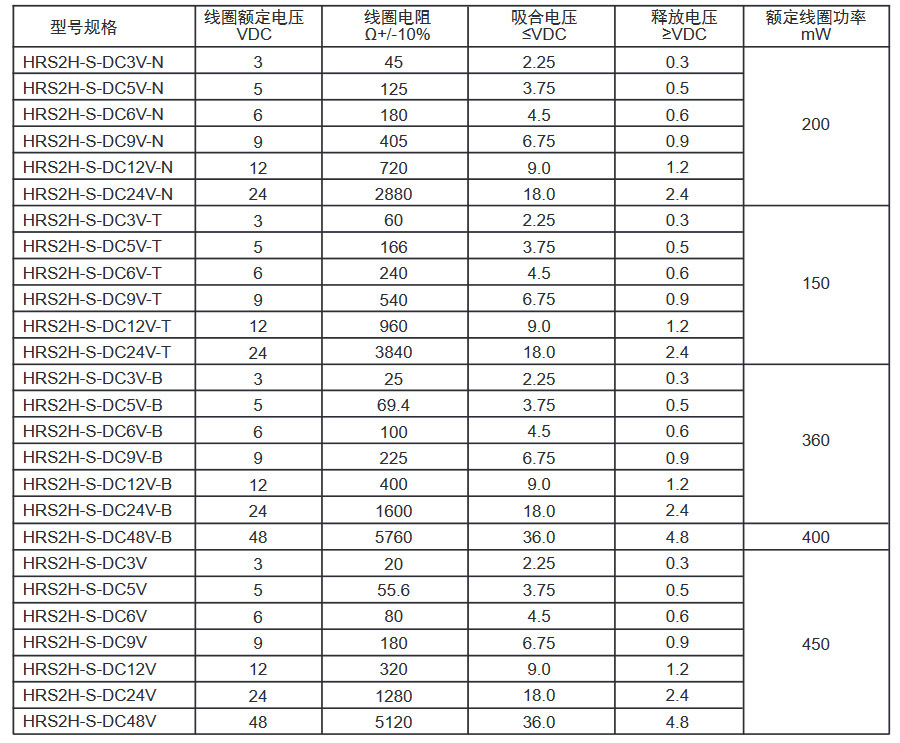

Coil Specification Table

Authentication
- Commodity name: AC6T
- 触点形式: 1A
- 触点负载: GP:7A 250VAC,10A 250VAC TV-5 250VAC
- 线圈功率: 200mW
超小型继电器尺寸:20.3×10.0×11.4(mm) 高灵敏度继电器触点形式:二组转换
- NO:CQC13002092811
- NO.50097843
- NO.E164730
Key words:
- hrs2h
- no
- no.50097843
- cqc13002092811
- no.e164730
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

内包装方式	25只/管
总数量（只）	2000/箱
纸箱规格（长×宽×高）mm	576×316×132
净重（Kg）	10.5
毛重（Kg）	12.5
内包装方式	25只/管
总数量（只）	2000/箱
纸箱规格（长×宽×高）mm	576×316×132
净重（Kg）	10.5
毛重（Kg）	12.5

Characteristic curve
Coil Specification Table

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

- Commodity name: AC6T
- 触点形式: 1A
- 触点负载: GP:7A 250VAC,10A 250VAC TV-5 250VAC
- 线圈功率: 200mW
超小型继电器尺寸:20.3×10.0×11.4(mm) 高灵敏度继电器触点形式:二组转换
- NO:CQC13002092811
- NO.50097843
- NO.E164730
Key words:
- hrs2h
- no
- no.50097843
- cqc13002092811
- no.e164730
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

内包装方式	25只/管
总数量（只）	2000/箱
纸箱规格（长×宽×高）mm	576×316×132
净重（Kg）	10.5
毛重（Kg）	12.5
内包装方式	25只/管
总数量（只）	2000/箱
纸箱规格（长×宽×高）mm	576×316×132
净重（Kg）	10.5
毛重（Kg）	12.5

Characteristic curve
Coil Specification Table
