HRM3

Category:

Characteristic

Available in sealed and unsealed versions Sealed: 24.6×10.6×25.0(mm) Unsealed: 24.0×10.0×25.0(mm) High sensitivity type with power consumption of 250mW 1 form A contact configuration Comply with TV-5 standards required for TV and audio power supplies

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

Authentication
- Commodity name: HRM3
- Commodity ID: B-010
- 触点形式: 1 Form A
- 触点负载: 10A 250VAC/30VDC,TV-5
- 线圈功率: Nominal Coil Power: 150mW, 250mW, 540mW
Available in sealed and unsealed versions Sealed: 24.6×10.6×25.0(mm) Unsealed: 24.0×10.0×25.0(mm) High sensitivity type with power consumption of 250mW 1 form A contact configuration Comply with TV-5 standards required for TV and audio power supplies

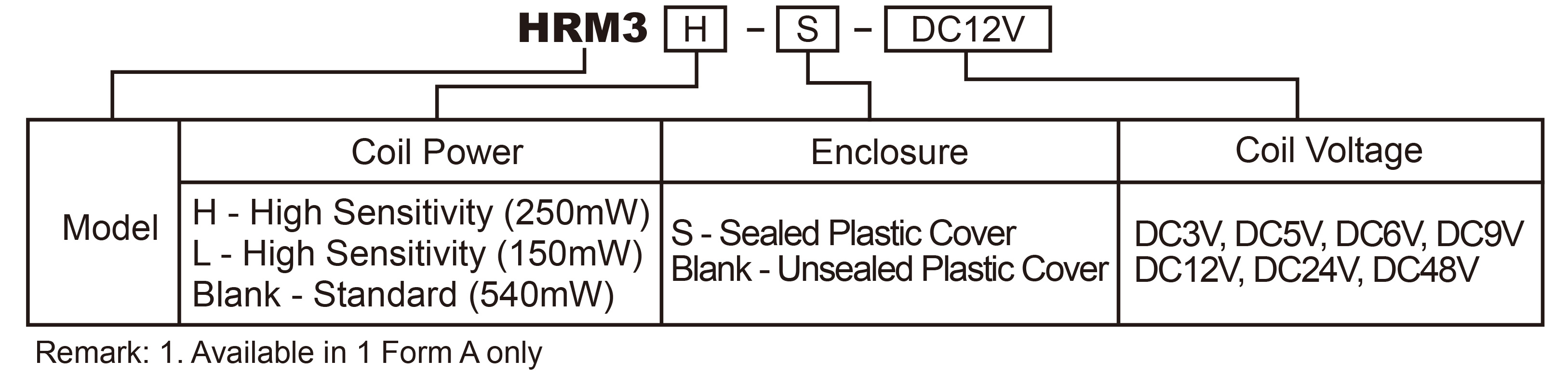

Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A
Contact Material		Ag Alloy
Contact Rating		10A 250VAC/30VDC, TV-5
Contact Resistance		Max. 100mΩ (6VDC 1A)
Load	Max. Switching Voltage	250VAC/30VDC
	Max. Switching Current	10A
	Max. Switching Power	2,500VA, 300W
	Min. Switching Load	5VDC, 100mA
Life	Electrical	100,000 operations
Life	Mechanical	2,000,000 operations

COIL DATA

Nominal Coil Power

150mW, 250mW, 540mW

GENERAL DATA

Insulation Resistance		Min 1000MΩ 500VDC
Dielectric Strength	Between open contacts		1,000VAC, 1min
	Between coil and contacts		4,000VAC, 1min
Sure Strength		10,000VAC
Operate Time		Max. 15ms
Release Time		Max. 8ms
Operating Temperature		-40~+70C
Humidity		35~95%RH, +40C
Shock Resistance	Endurance	1,000m/s
	Misoperation	100m/s
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 10.0g

Note: The above values are initial values.

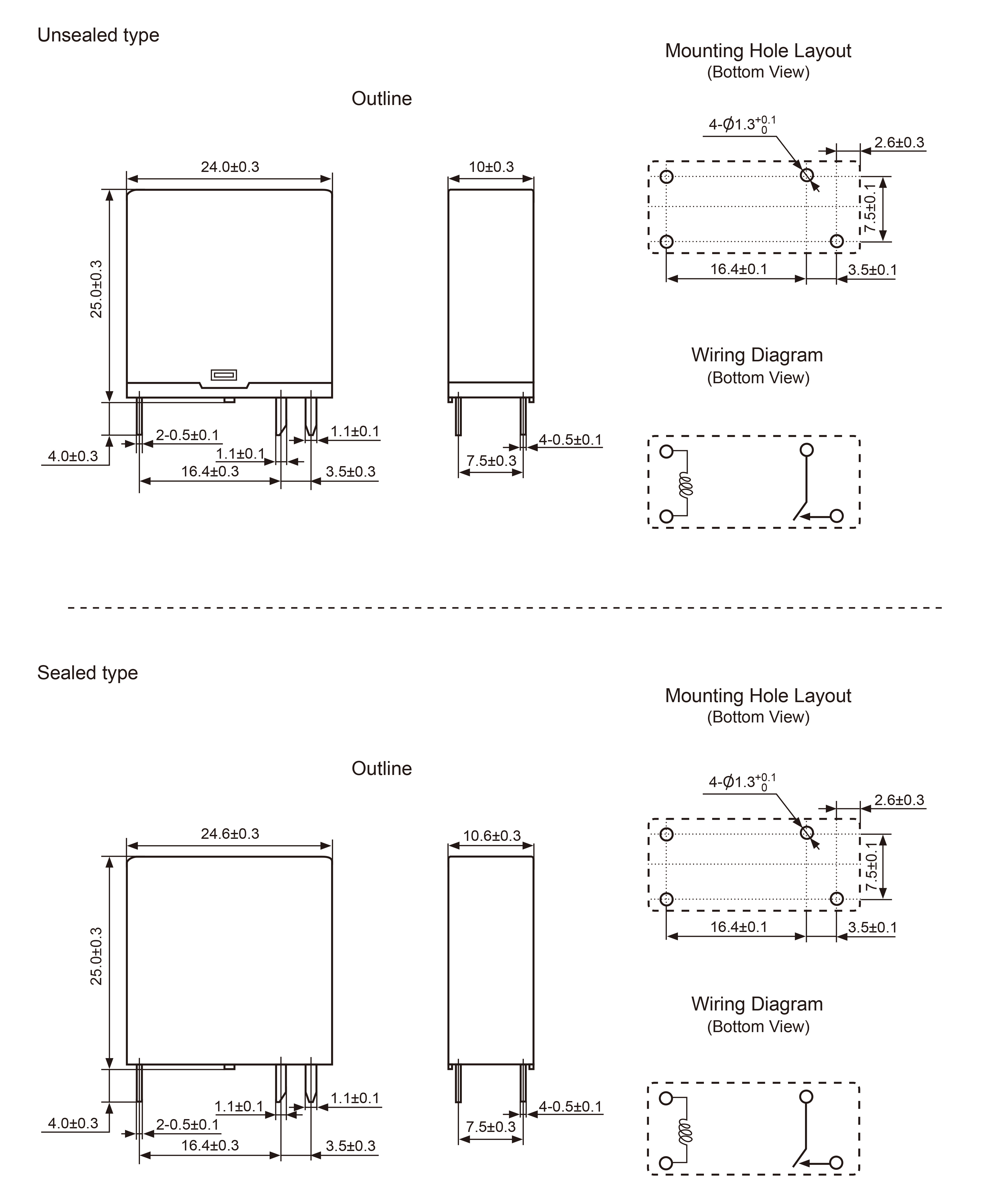

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

Product number	Inner packing	Carton specifications length × width × height (mm)	Total quantity (only)	Net weight(Kg)	Gross weight (Kg)
HRM3	25 pcs/tube	340×340×17	1000/box	9.0	11.3

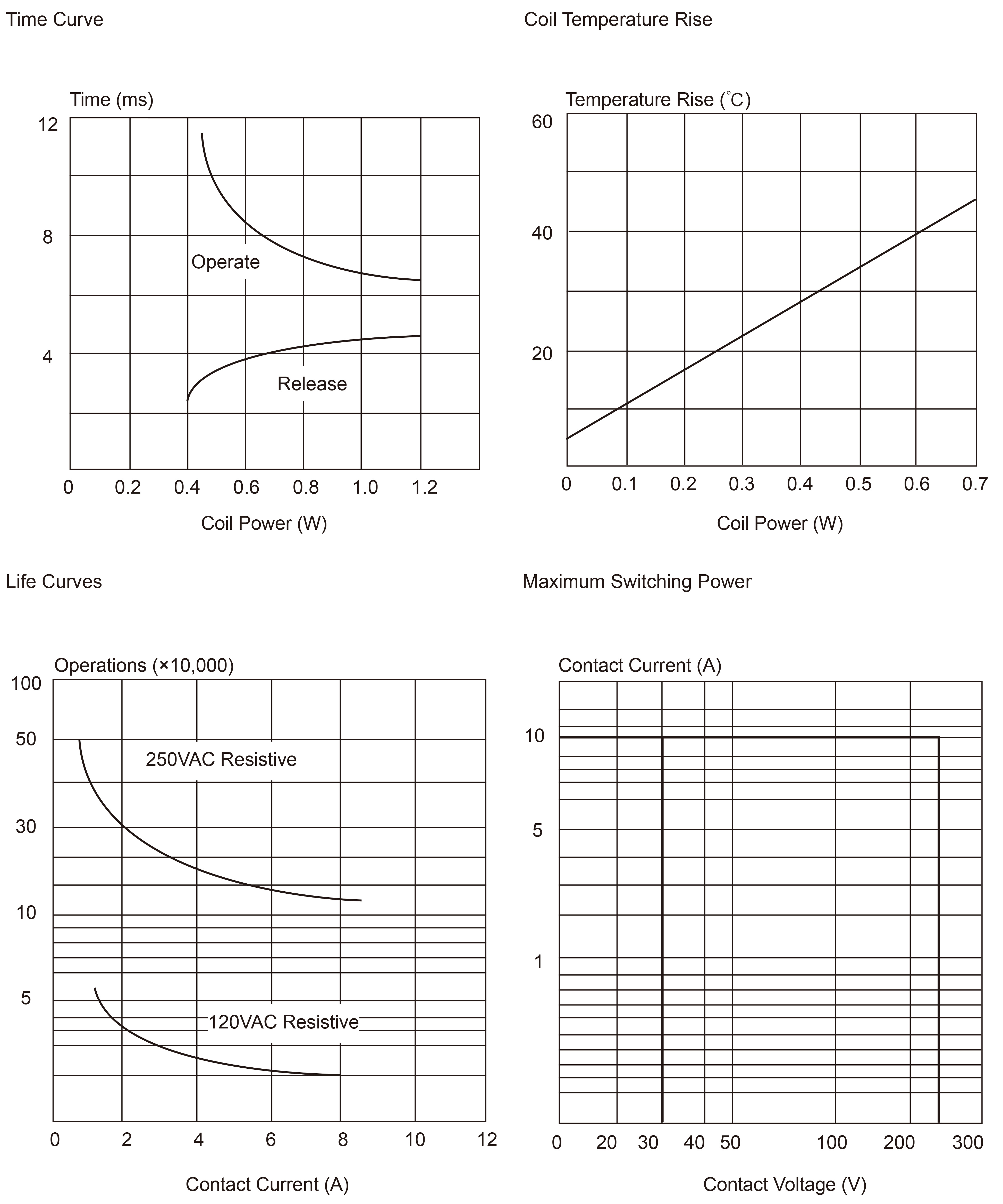

Characteristic curve
Coil Specification Table

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

- Commodity name: HRM3
- Commodity ID: B-010
- 触点形式: 1 Form A
- 触点负载: 10A 250VAC/30VDC,TV-5
- 线圈功率: Nominal Coil Power: 150mW, 250mW, 540mW
Available in sealed and unsealed versions Sealed: 24.6×10.6×25.0(mm) Unsealed: 24.0×10.0×25.0(mm) High sensitivity type with power consumption of 250mW 1 form A contact configuration Comply with TV-5 standards required for TV and audio power supplies
Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A
Contact Material		Ag Alloy
Contact Rating		10A 250VAC/30VDC, TV-5
Contact Resistance		Max. 100mΩ (6VDC 1A)
Load	Max. Switching Voltage	250VAC/30VDC
	Max. Switching Current	10A
	Max. Switching Power	2,500VA, 300W
	Min. Switching Load	5VDC, 100mA
Life	Electrical	100,000 operations
Life	Mechanical	2,000,000 operations

COIL DATA

Nominal Coil Power

150mW, 250mW, 540mW

GENERAL DATA

Insulation Resistance		Min 1000MΩ 500VDC
Dielectric Strength	Between open contacts		1,000VAC, 1min
	Between coil and contacts		4,000VAC, 1min
Sure Strength		10,000VAC
Operate Time		Max. 15ms
Release Time		Max. 8ms
Operating Temperature		-40~+70C
Humidity		35~95%RH, +40C
Shock Resistance	Endurance	1,000m/s
	Misoperation	100m/s
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 10.0g

Note: The above values are initial values.

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

Product number	Inner packing	Carton specifications length × width × height (mm)	Total quantity (only)	Net weight(Kg)	Gross weight (Kg)
HRM3	25 pcs/tube	340×340×17	1000/box	9.0	11.3

Characteristic curve
Coil Specification Table
