Characteristic
Microminiature relay Dimensions: 20.3×10.0×11.4 (mm) High sensitivity 2 Form C contacts(DPDT)
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: HRS2H
- Commodity ID: A-005
- 触点形式: 2 Form C
- 触点负载: 1A 120VAC/24VDC 2A 120VAC/24VDC
- 线圈功率: Nominal Coil Power: 150mW, 200mW, 360mW, 450mW
Microminiature relay Dimensions: 20.3×10.0×11.4 (mm) High sensitivity 2 Form C contacts(DPDT)
-
Naming rules
-
Specifications
CONTACT DATAContact Form
2 Form C
Contact Material
AuAg overlay
Contact Rating
1A 120VAC/24VDC 2A 120VAC/24VDC
Contact Resistance
Max. 50mΩ (6VDC 0.1A)
Load
Max. Switching Voltage
125VAC/30VDC
Max. Switching Current
2A
Max. Switching Power
240VA, 48W
Min. Switching Load
5VDC, 10mA
Life
Electrical
100,000 operations
Mechanical
15,000,000 operations
COIL DATA
Nominal Coil Power
150mW, 200mW, 360mW, 450mW
GENERAL DATA
Insulation Resistance
Min 1000MΩ 500VDC
Dielectric Strength
Between open contacts
500VAC, 1min
Between coil and contacts
1,000VAC, 1min
Operate Time
Max. 7ms
Release Time
Max. 3ms
Operating Temperature
-25C to +70C
Humidity
35~95%RH, +40C
Surge Strength
1,500VAC, 10x160 μs
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 5.0g
Note: The above values are initial values
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
HRS2H
25 pcs/tube
576×316×132
2000/box
10.5
12.5
-

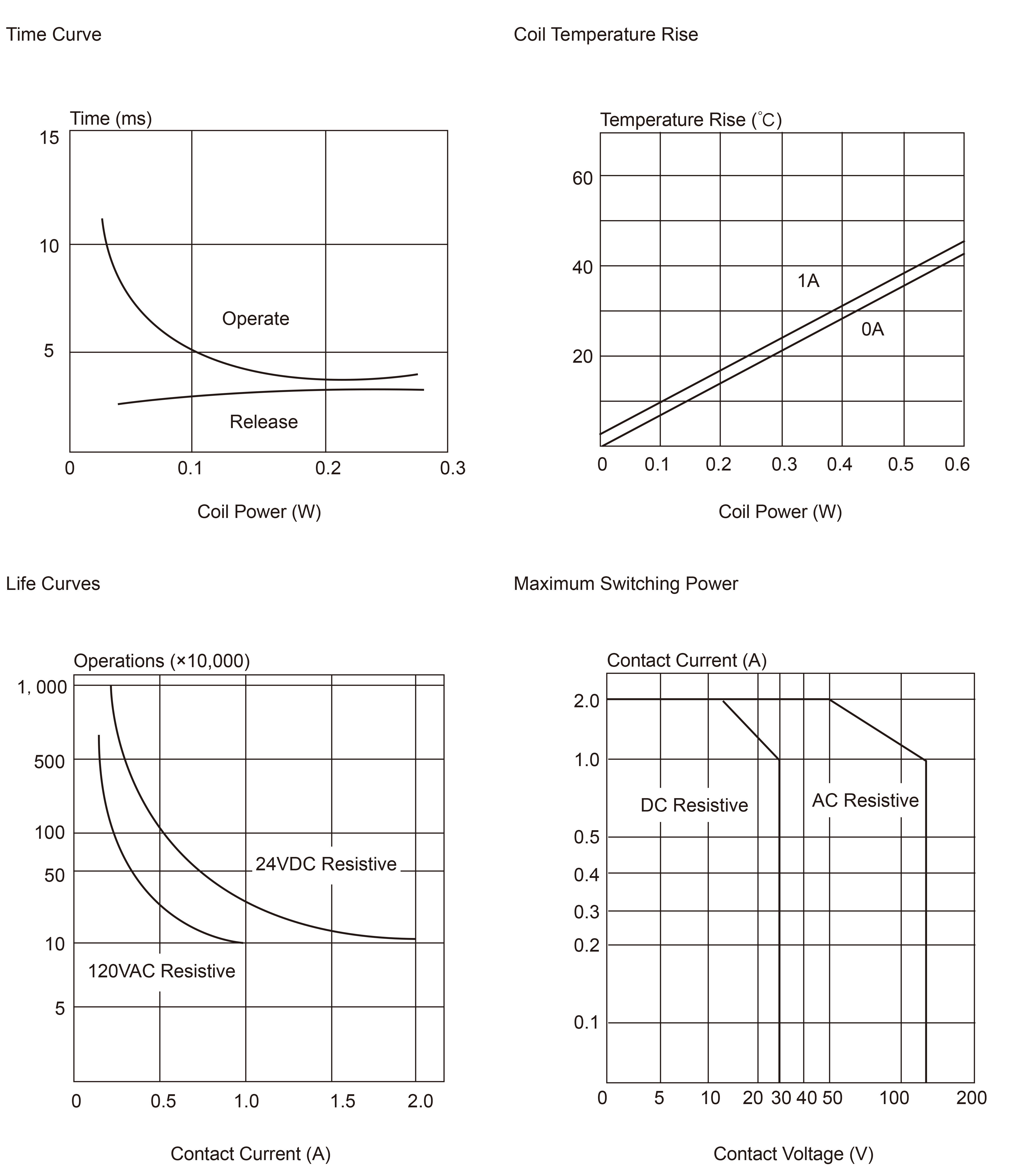

Characteristic curve
- Coil Specification Table
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
- Commodity name: HRS2H
- Commodity ID: A-005
- 触点形式: 2 Form C
- 触点负载: 1A 120VAC/24VDC 2A 120VAC/24VDC
- 线圈功率: Nominal Coil Power: 150mW, 200mW, 360mW, 450mW
Microminiature relay Dimensions: 20.3×10.0×11.4 (mm) High sensitivity 2 Form C contacts(DPDT)
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
2 Form C
Contact Material
AuAg overlay
Contact Rating
1A 120VAC/24VDC 2A 120VAC/24VDC
Contact Resistance
Max. 50mΩ (6VDC 0.1A)
Load
Max. Switching Voltage
125VAC/30VDC
Max. Switching Current
2A
Max. Switching Power
240VA, 48W
Min. Switching Load
5VDC, 10mA
Life
Electrical
100,000 operations
Mechanical
15,000,000 operations
COIL DATA
Nominal Coil Power
150mW, 200mW, 360mW, 450mW
GENERAL DATA
Insulation Resistance
Min 1000MΩ 500VDC
Dielectric Strength
Between open contacts
500VAC, 1min
Between coil and contacts
1,000VAC, 1min
Operate Time
Max. 7ms
Release Time
Max. 3ms
Operating Temperature
-25C to +70C
Humidity
35~95%RH, +40C
Surge Strength
1,500VAC, 10x160 μs
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 5.0g
Note: The above values are initial values
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
HRS2H
25 pcs/tube
576×316×132
2000/box
10.5
12.5
-
Characteristic curve
