Characteristic
Miniature relay Dimensions: 19.0×15.5×15.8(mm) Dielectric strength of 2500V between coil and contacts Contact: 1 Form A, 1 Form C
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: HRS4F
- Commodity ID: A-019
- 触点形式: 1 Form A, 1 Form C
- 触点负载: 10A 250VAC/30VDC
- 线圈功率: Nominal Coil Power: 360mW, 450mW
Miniature relay Dimensions: 19.0×15.5×15.8(mm) Dielectric strength of 2500V between coil and contacts Contact: 1 Form A, 1 Form C
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
1 Form A, 1 Form C
Contact Material
Ag Alloy
Contact Rating
10A 250VAC/30VDC
Contact Resistance
Max. 100mΩ (24VDC 1A)
Load
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
10A
Max. Switching Power
2500VA, 300W
Min. Switching Load
5VDC, 100mA
Life
Electrical
100,000 operations
10A/250VAC - NO Contact
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
360mW, 450mW
GENERAL DATA
Insulation Resistance
Min. 1000MΩ 500VDC
Dielectric Strength
Between open contacts
1,000VAC, 1min
Between coil and contacts
2,500VAC, 1min
Inrush voltage
6,000VAC betweencoilandcontacts(1.2/50μs)
Operate Time
Max. 10ms
Release Time
Max. 5ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH, +40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 11.0g
-

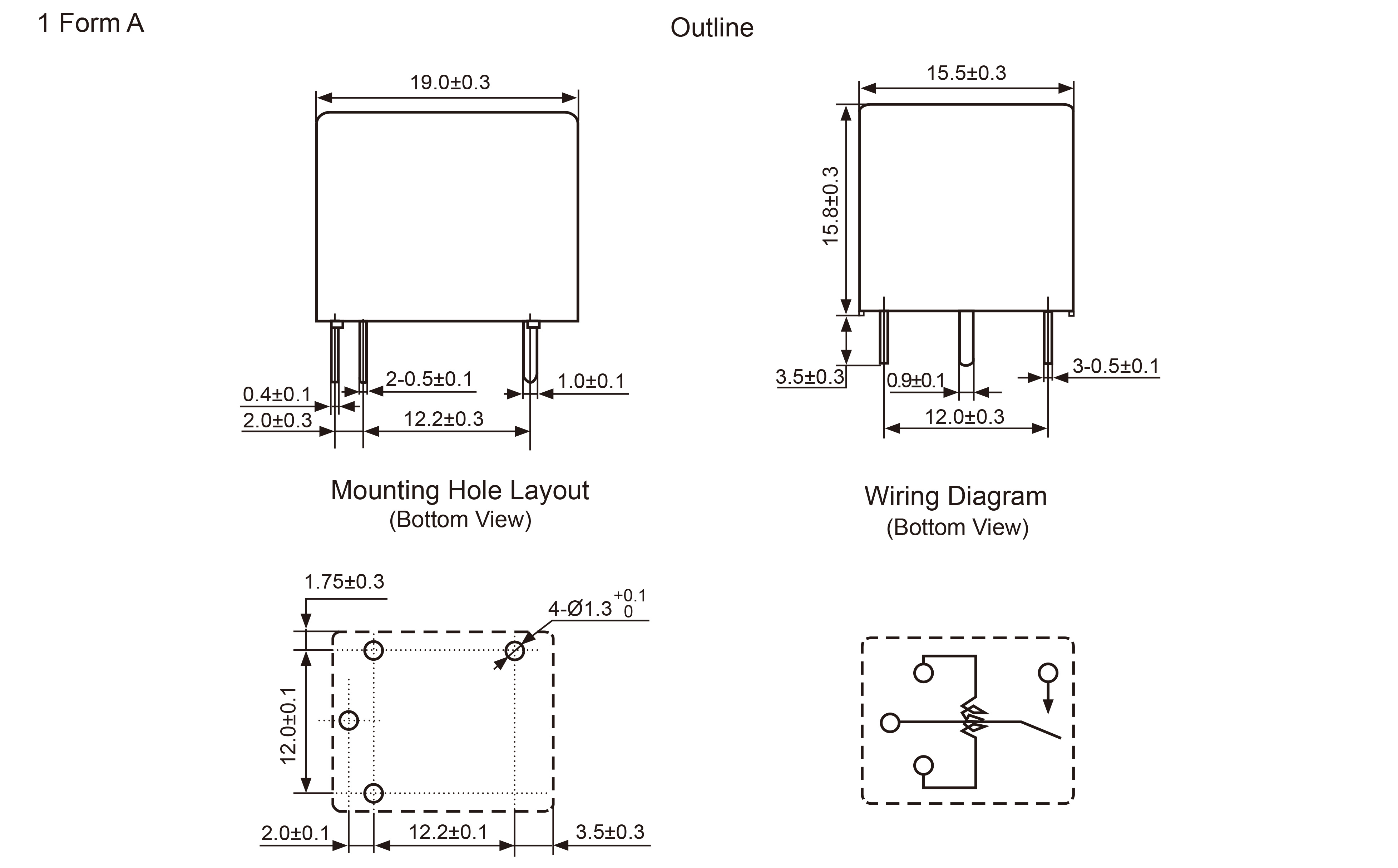

Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
HRS4F
25 pcs/tube
456×266×161
1000/box
13.3
15.3
- Characteristic curve
- Coil Specification Table
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
- Commodity name: HRS4F
- Commodity ID: A-019
- 触点形式: 1 Form A, 1 Form C
- 触点负载: 10A 250VAC/30VDC
- 线圈功率: Nominal Coil Power: 360mW, 450mW
Miniature relay Dimensions: 19.0×15.5×15.8(mm) Dielectric strength of 2500V between coil and contacts Contact: 1 Form A, 1 Form C
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
1 Form A, 1 Form C
Contact Material
Ag Alloy
Contact Rating
10A 250VAC/30VDC
Contact Resistance
Max. 100mΩ (24VDC 1A)
Load
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
10A
Max. Switching Power
2500VA, 300W
Min. Switching Load
5VDC, 100mA
Life
Electrical
100,000 operations
10A/250VAC - NO Contact
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
360mW, 450mW
GENERAL DATA
Insulation Resistance
Min. 1000MΩ 500VDC
Dielectric Strength
Between open contacts
1,000VAC, 1min
Between coil and contacts
2,500VAC, 1min
Inrush voltage
6,000VAC betweencoilandcontacts(1.2/50μs)
Operate Time
Max. 10ms
Release Time
Max. 5ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH, +40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 11.0g
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
HRS4F
25 pcs/tube
456×266×161
1000/box
13.3
15.3
- Characteristic curve
- Coil Specification Table
