Characteristic
Low profile, flat type relay Dimensions: 23.0×16.1×10.2(mm) Max. Switching capacity: 15A Tungsten lamp load: 10A 125VAC High sensitivity 200mW
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: V6
- Commodity ID: B-026
- 触点形式: 1 Form A
- 触点负载: 15A125VAC 10A 250VAC/24VDC
- 线圈功率: Nominal Coil Power: 200mW
Low profile, flat type relay Dimensions: 23.0×16.1×10.2(mm) Max. Switching capacity: 15A Tungsten lamp load: 10A 125VAC High sensitivity 200mW
-

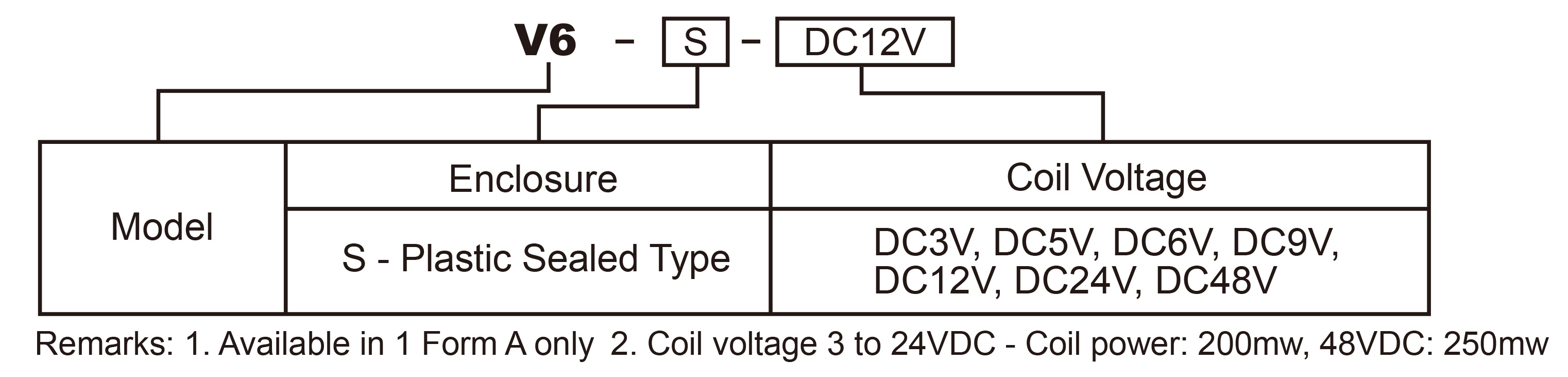

Naming rules
-
Specifications
CONTACT DATA
Contact Form
1 Form A
Contact Material
Ag Alloy
Contact Rating
15A125VAC
10A 250VAC/24VDC
Contact Resistance
Max. 100mΩ (6VDC 1A)
Load
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
16A
Max. Switching Power
4,000VA, 480W
Min. Switching Load
5VDC, 100mA
Life
Electrical
100,000 operations
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
200mW
GENERAL DATA
Insulation Resistance
Min. 1000MΩ 500VDC
Dielectric Strength
Between open contacts
750VAC, 1min
Between coil and contacts
2,500VAC, 1min
Operate Time
Max. 15ms
Release Time
Max. 8ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH,+40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 9.00g
-

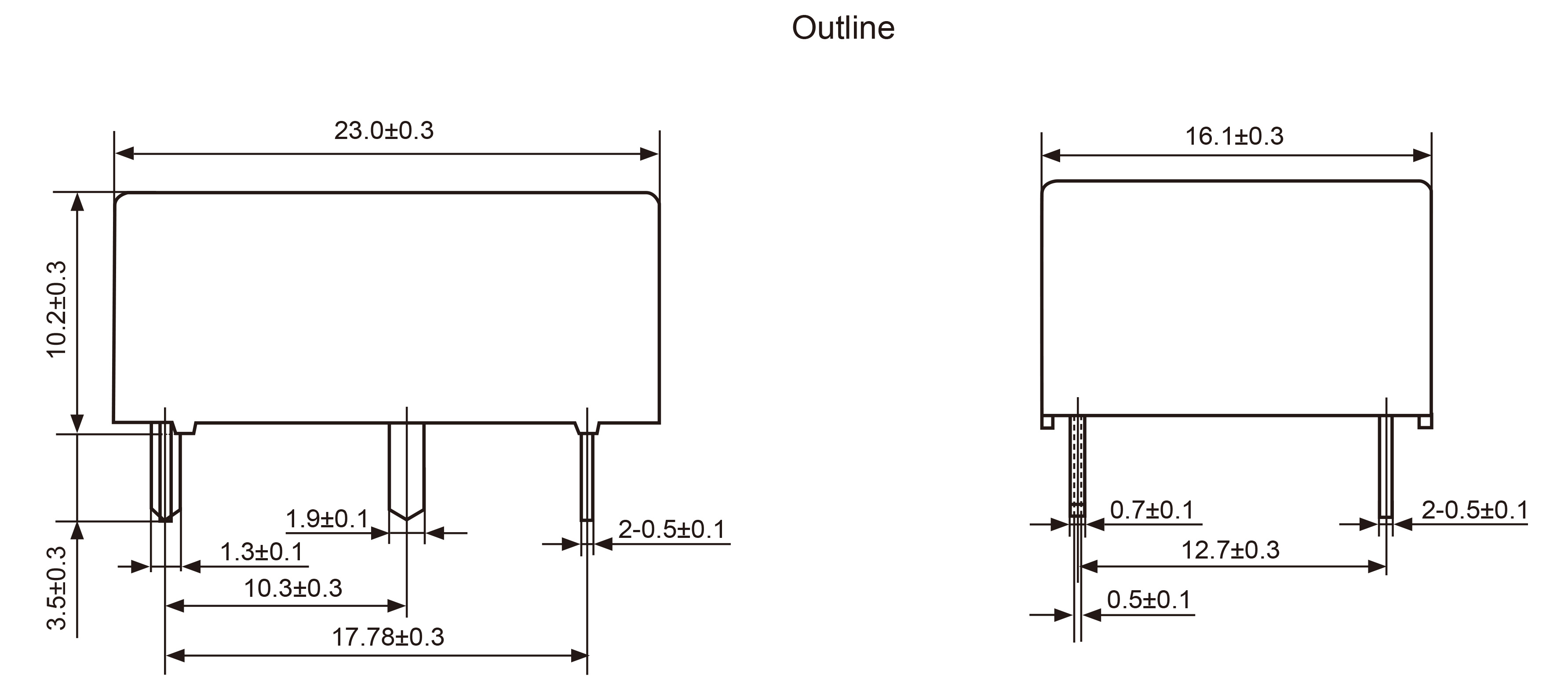

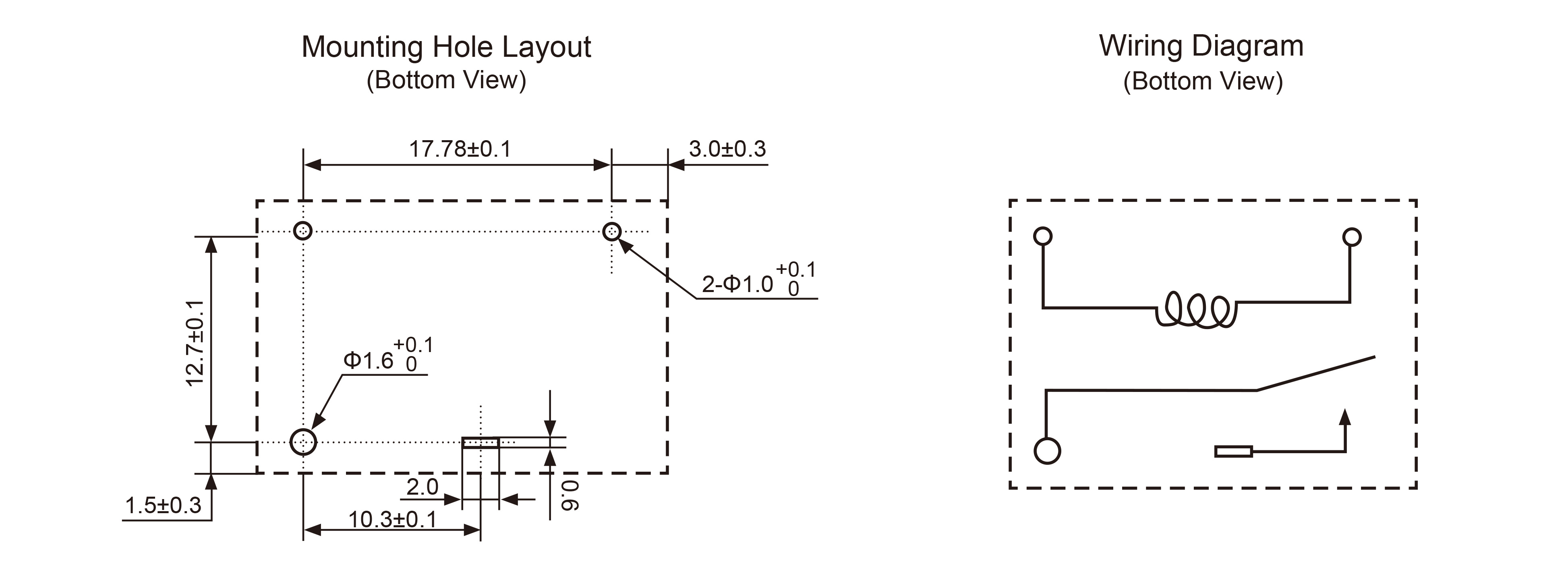

Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
V6
25 pcs/tube
647×235×136
1000/box
8.8
10.0
-

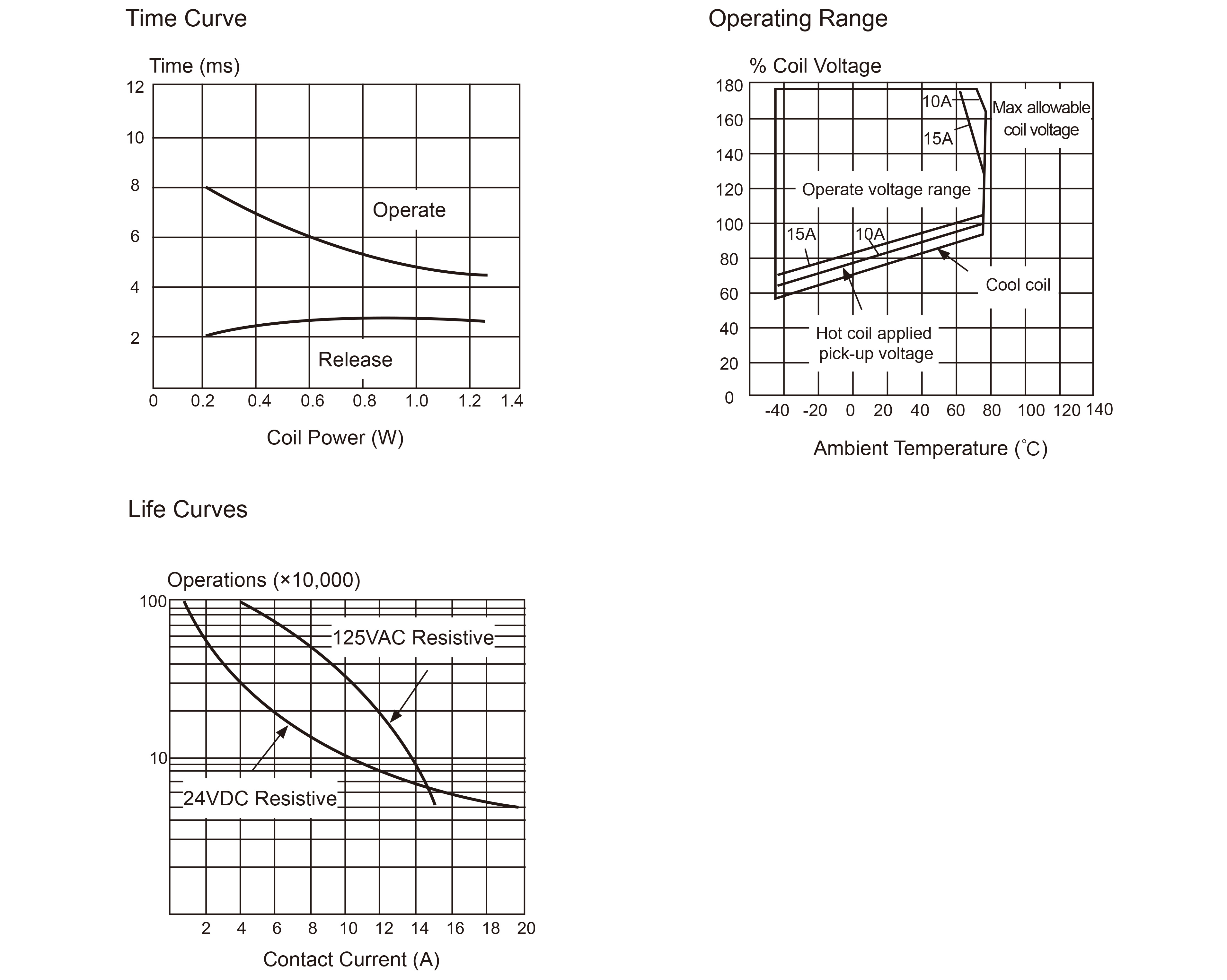

Characteristic curve
- Coil Specification Table
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
- Commodity name: V6
- Commodity ID: B-026
- 触点形式: 1 Form A
- 触点负载: 15A125VAC 10A 250VAC/24VDC
- 线圈功率: Nominal Coil Power: 200mW
Low profile, flat type relay Dimensions: 23.0×16.1×10.2(mm) Max. Switching capacity: 15A Tungsten lamp load: 10A 125VAC High sensitivity 200mW
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
1 Form A
Contact Material
Ag Alloy
Contact Rating
15A125VAC
10A 250VAC/24VDC
Contact Resistance
Max. 100mΩ (6VDC 1A)
Load
Max. Switching Voltage
250VAC/30VDC
Max. Switching Current
16A
Max. Switching Power
4,000VA, 480W
Min. Switching Load
5VDC, 100mA
Life
Electrical
100,000 operations
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
200mW
GENERAL DATA
Insulation Resistance
Min. 1000MΩ 500VDC
Dielectric Strength
Between open contacts
750VAC, 1min
Between coil and contacts
2,500VAC, 1min
Operate Time
Max. 15ms
Release Time
Max. 8ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH,+40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 9.00g
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
V6
25 pcs/tube
647×235×136
1000/box
8.8
10.0
-
Characteristic curve
- Coil Specification Table
