Characteristic
Miniature heavy duty general purpose automotive relay Dimensions: 20.4×15.1×22.0(mm) Switching capacity 35A 1 Form A and C contact configurations Operating ambient temperature: 125℃ Applications: air compressor, heater, fan motor, blower fan, defogger, etc
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: 4133
- Commodity ID: C-008
- 触点形式: 1 Form A, 1 Form C
- 触点负载: Refer to table1
- 线圈功率: Nominal Coil Power: 1.5W(12V), 1.8W(24V)
Miniature heavy duty general purpose automotive relay Dimensions: 20.4×15.1×22.0(mm) Switching capacity 35A 1 Form A and C contact configurations Operating ambient temperature: 125℃ Applications: air compressor, heater, fan motor, blower fan, defogger, etc
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
1 Form A, 1 Form C
Contact Material
Ag Alloy
Contact Rating
Refer to table1
Contact Resistance
Max. 50mΩ ( 6VDC 1A)
Load
Max. Switching Voltage
28VDC
Max. Switching Current
35A
Max.Make Current
NO: 90A
NC: 20A
Max. Switching Power
490W (12VDC) 420W (24VDC)
Life
Electrical
100,000 operations
Mechanical
1,000,000 operations
COIL DATA
Nominal Coil Power
1.5W(12V), 1.8W(24V)
Nominal Coil Power(With Resistor)
1.7W(12V), 2.0W(24V)
Nominal Coil Power
(High Sensitivity)
1.1W(12V),1.3W(24V),1.5W(24V)
Nominal Coil Power
(High Sensitivity)(With Resistor)
1.3W(12V),1.6W(24V),1.7W(24V)
GENERAL DATA
Insulation Resistance
Min. 100MΩ 500VDC
Dielectric Strength
Between open contacts
550VAC, 1min
Between coil and contacts
550VAC, 1min
Operate Time
Max. 10ms
Release Time
Max. 10ms
Max.20ms(With Diode)
Operating Temperature
-40C to +125C
Humidity
35~95%RH,+40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 18.0g
Table 1 (Contact Rating)
Type
Coil Voltage 12VDC
Coil Voltage 24VDC
Rating (Resistive Load)
Contact Rating
NO: 35A 14VDC
NC: 20A 14VDC
NO: 20A 28VDC
NC: 10A 28VDC
125C Switching Current
NO: 20A(14VDC)
NC: 10A(14VDC)
NO: 15A(28VDC)
NC: 8A(28VDC)
-

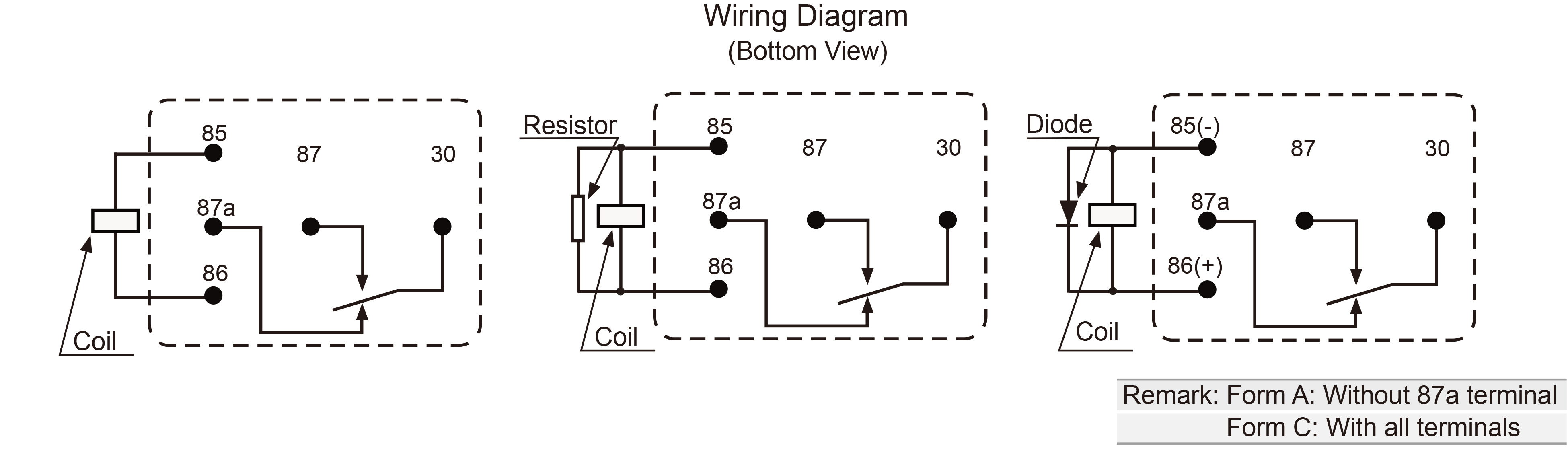

Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton specifications length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
4133
100pcs/tube
390×270×262
1000/box
17.0
18.5
-

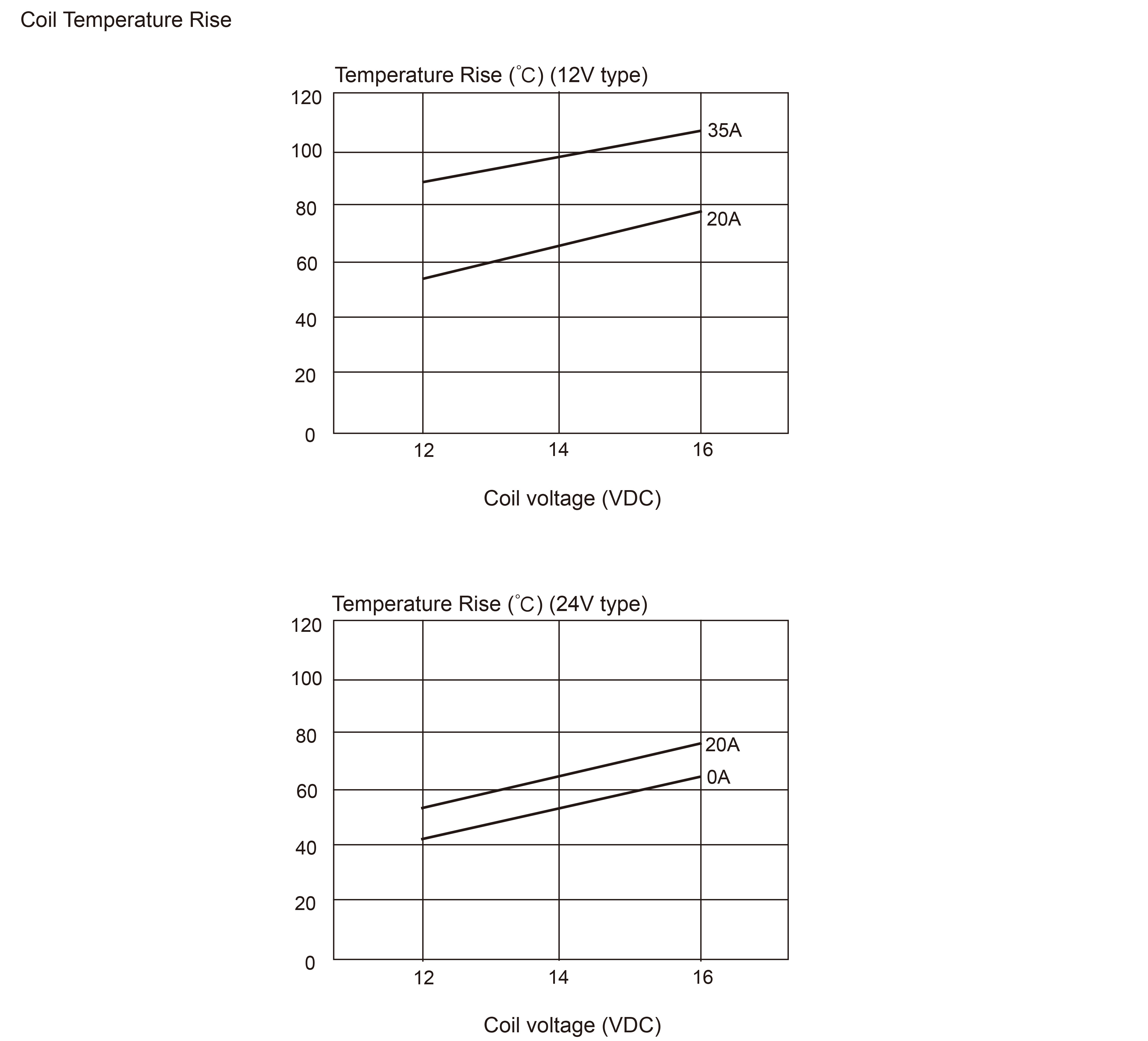

Characteristic curve
