CMA36N

Category:

Characteristic

General purpose automotive relay Dimensions:26.6×26.0×22.7(mm) 70A of switching capability Contact:1 Form A Availlable for Plastic sealed and unsealed type Quick Connect Terminals and PCB Terminals 125℃ of operating ambient temperature

Authentication

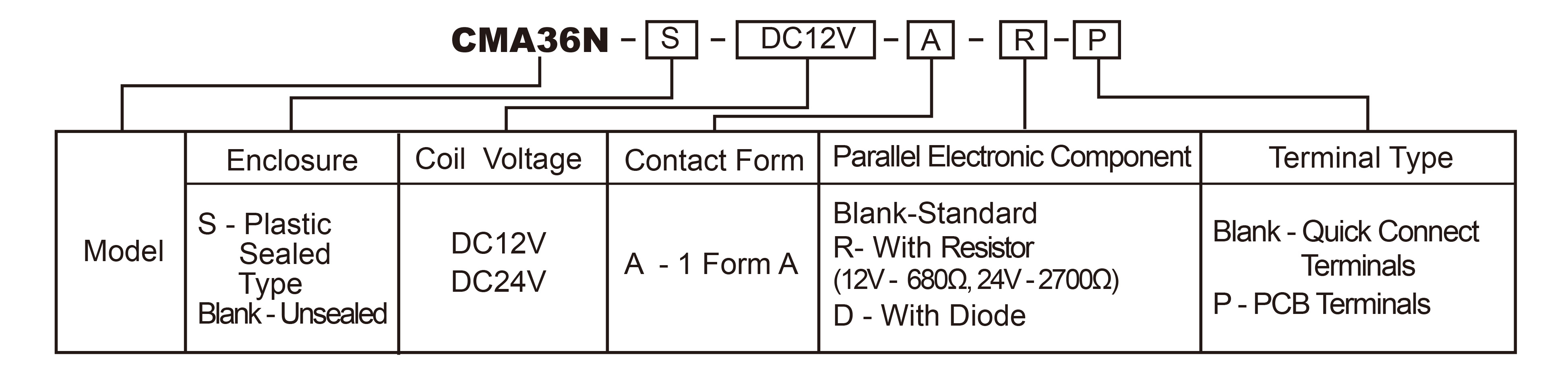

Naming rules
Specifications

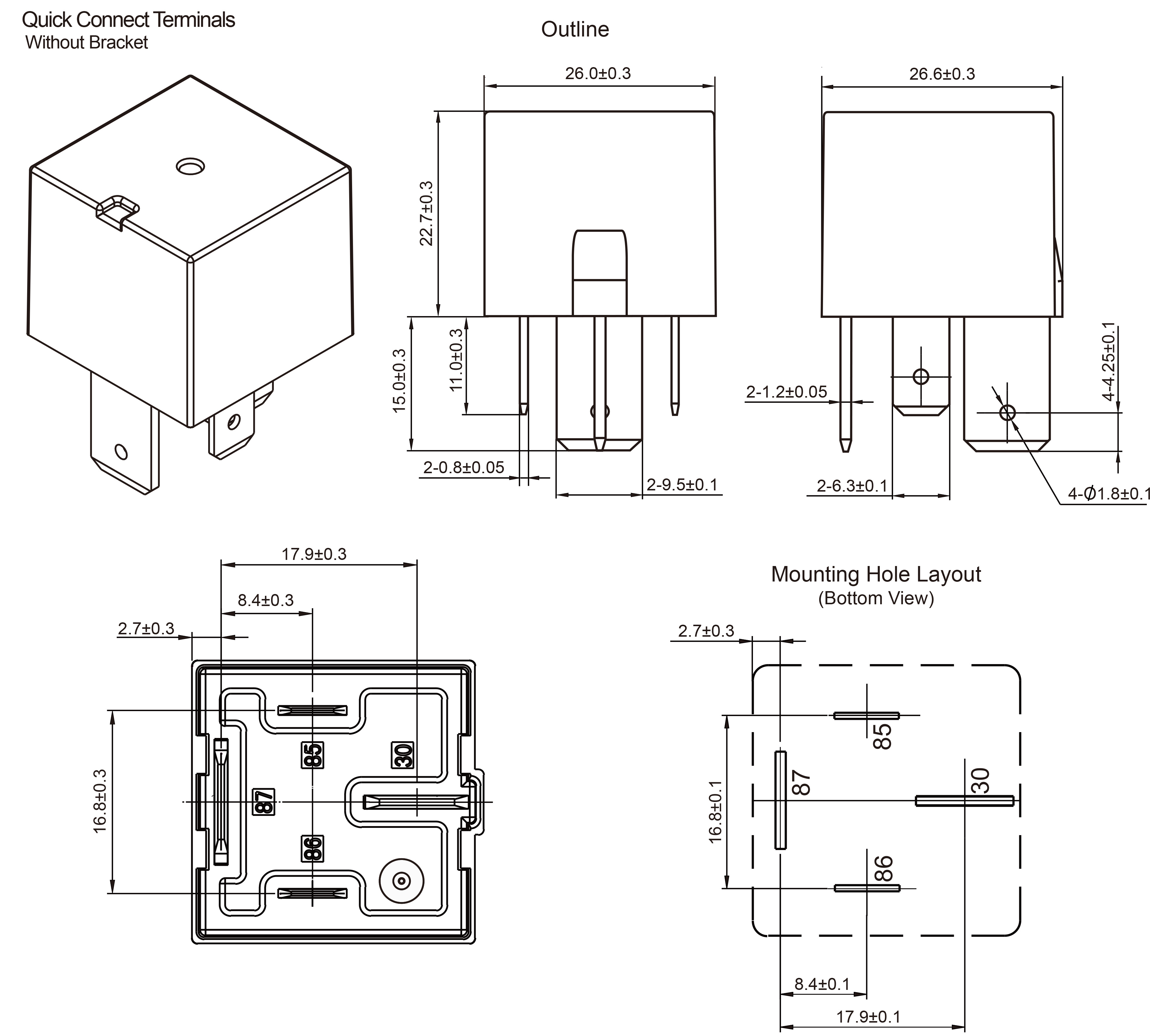

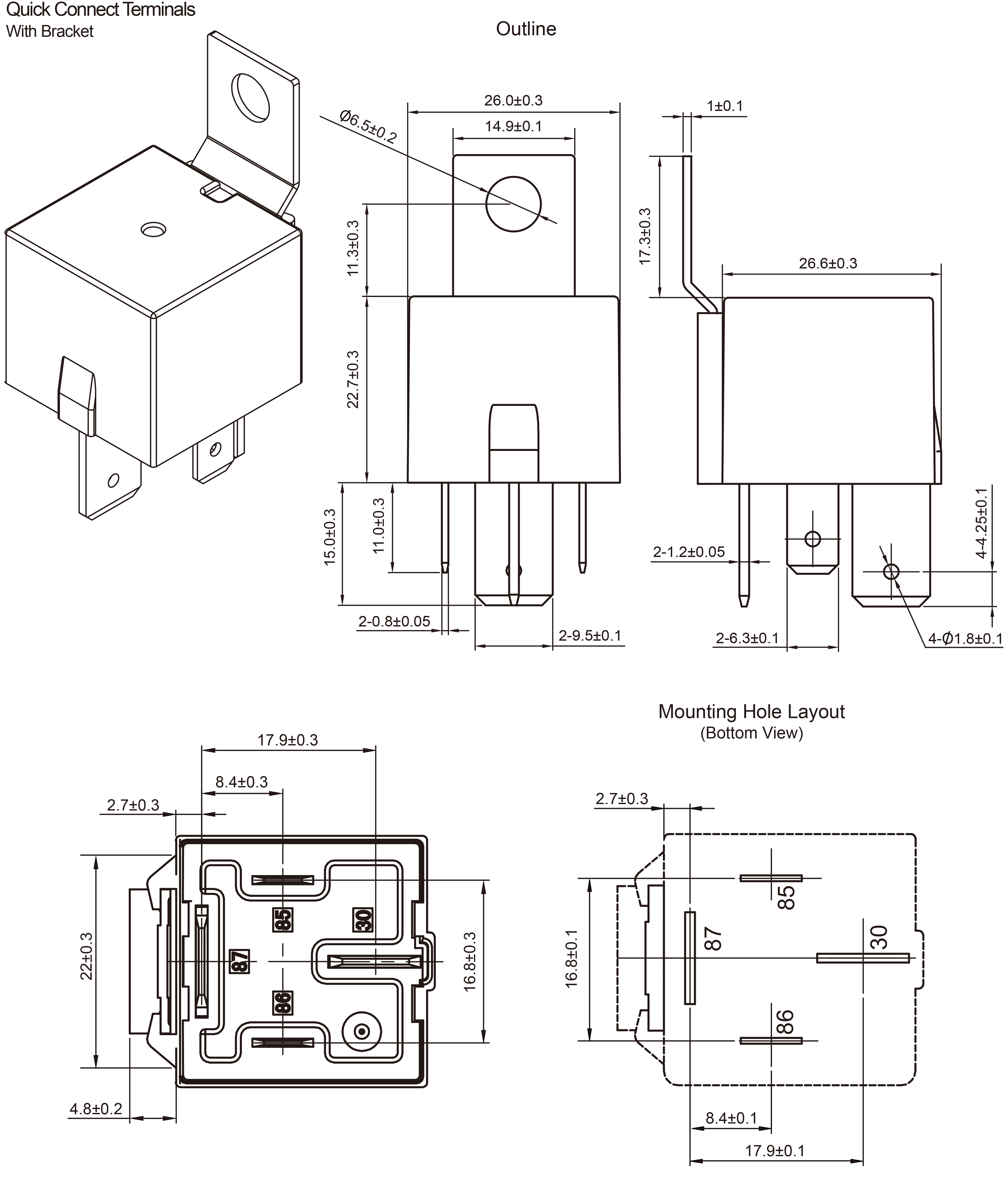

Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

Authentication
- Commodity name: CMA36N
- Commodity ID: C-021
- 触点形式: 1 Form A
- 触点负载: Resistive： NO:70A/14VDC NO:40A/28VDC Inductive： Make150A/14VDC,break50A/14VDC Lamp： Surge200A/14VDC,break40A/14VDC
- 线圈功率: 1.6W(12V), 1.8W(24V)
General purpose automotive relay Dimensions:26.6×26.0×22.7(mm) 70A of switching capability Contact:1 Form A Availlable for Plastic sealed and unsealed type Quick Connect Terminals and PCB Terminals 125℃ of operating ambient temperature
Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A
Contact Material		Ag Alloy
Contact Rating		Resistive： NO:70A/14VDC NO:40A/28VDC Inductive： Make150A/14VDC,break50A/14VDC Lamp： Surge200A/14VDC,break40A/14VDC
Contact Resistance				Max.50mΩ( 24VDC 1A)
Load	Max. Switching Voltage			Refer to 'Max.switching power curve'
	Max. Switching Current			Make(NO,lamp)200A Break(steady state)70A(res,13.5V)
	Max.Continous Current			70A(23C),50A(85C),30A(125C)
	Min. Switching Load			1A 6VDC
Life	Electrical		100,000Cycles
	Mechanical		1,000,000Cycles(300cycles/minutes)

COIL DATA

Nominal Coil Power	1.6W(12V), 1.8W(24V)
Nominal Coil Power (With Resistor)	1.8W(12V), 2.0W(24V)

GENERAL DATA

Insulation Resistance		Min.100MΩ 500VDC
Dielectric Strength	Between open contacts		550VAC,50/60Hz,1 min
	Between coil and contacts		550VAC,50/60Hz,1 min
Operate Time		Max.10ms
Release Time		Max.10ms
		Max.20ms(With Diode)
Operating Temperature		-40C to +125C

Shock Resistance	294m/s2(30g)
Vibration Resistance	5Hz~22.3Hz,10mmDouble Amplitude 22.3Hz~500Hz,98m/s (10g)2
Mechanic	Cover Strength: 200N (Pull/Press) Terminal Strength: 100N (Pull/Press) Terminal Bending: 10N (Each Direction)
Weight	Approximately 32.0g (Without Bracket) Approximately 35.0g (Bracket)

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

Product number	Inner packing	Carton specifications length × width × height (mm)	Total quantity (only)	Net weight(Kg)	Gross weight (Kg)
CMA36N	50pcs/tube	424×309×213	250/box	8.0	9.3

Characteristic curve
Coil Specification Table

Authentication
Naming rules
Specifications
Outline, Wiring, Installation Hole Diagram
Product Packaging Specifications
Characteristic curve
Coil Specification Table

- Commodity name: CMA36N
- Commodity ID: C-021
- 触点形式: 1 Form A
- 触点负载: Resistive： NO:70A/14VDC NO:40A/28VDC Inductive： Make150A/14VDC,break50A/14VDC Lamp： Surge200A/14VDC,break40A/14VDC
- 线圈功率: 1.6W(12V), 1.8W(24V)
General purpose automotive relay Dimensions:26.6×26.0×22.7(mm) 70A of switching capability Contact:1 Form A Availlable for Plastic sealed and unsealed type Quick Connect Terminals and PCB Terminals 125℃ of operating ambient temperature
Naming rules

Specifications

CONTACT DATA

Contact Form		1 Form A
Contact Material		Ag Alloy
Contact Rating		Resistive： NO:70A/14VDC NO:40A/28VDC Inductive： Make150A/14VDC,break50A/14VDC Lamp： Surge200A/14VDC,break40A/14VDC
Contact Resistance				Max.50mΩ( 24VDC 1A)
Load	Max. Switching Voltage			Refer to 'Max.switching power curve'
	Max. Switching Current			Make(NO,lamp)200A Break(steady state)70A(res,13.5V)
	Max.Continous Current			70A(23C),50A(85C),30A(125C)
	Min. Switching Load			1A 6VDC
Life	Electrical		100,000Cycles
	Mechanical		1,000,000Cycles(300cycles/minutes)

COIL DATA

Nominal Coil Power	1.6W(12V), 1.8W(24V)
Nominal Coil Power (With Resistor)	1.8W(12V), 2.0W(24V)

GENERAL DATA

Insulation Resistance		Min.100MΩ 500VDC
Dielectric Strength	Between open contacts		550VAC,50/60Hz,1 min
	Between coil and contacts		550VAC,50/60Hz,1 min
Operate Time		Max.10ms
Release Time		Max.10ms
		Max.20ms(With Diode)
Operating Temperature		-40C to +125C

Shock Resistance	294m/s2(30g)
Vibration Resistance	5Hz~22.3Hz,10mmDouble Amplitude 22.3Hz~500Hz,98m/s (10g)2
Mechanic	Cover Strength: 200N (Pull/Press) Terminal Strength: 100N (Pull/Press) Terminal Bending: 10N (Each Direction)
Weight	Approximately 32.0g (Without Bracket) Approximately 35.0g (Bracket)

Outline, Wiring, Installation Hole Diagram

Product Packaging Specifications

Product number	Inner packing	Carton specifications length × width × height (mm)	Total quantity (only)	Net weight(Kg)	Gross weight (Kg)
CMA36N	50pcs/tube	424×309×213	250/box	8.0	9.3

Characteristic curve
Coil Specification Table
