Characteristic
small relay Dimensions: 15.6×12.2×13.7(mm) bridge type moving contact Application: anti-theft device, car light control
- Authentication

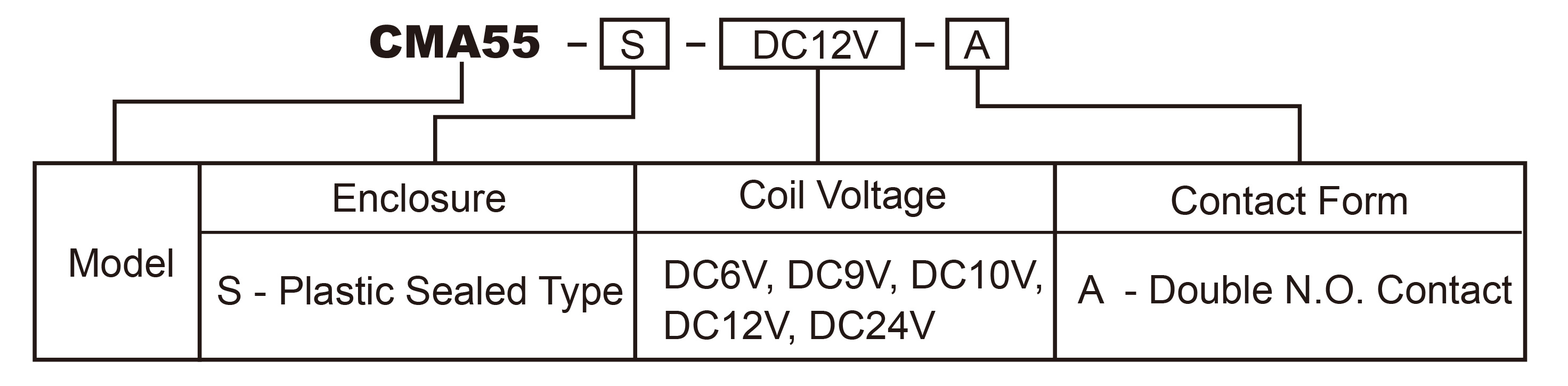

- Naming rules
- Specifications

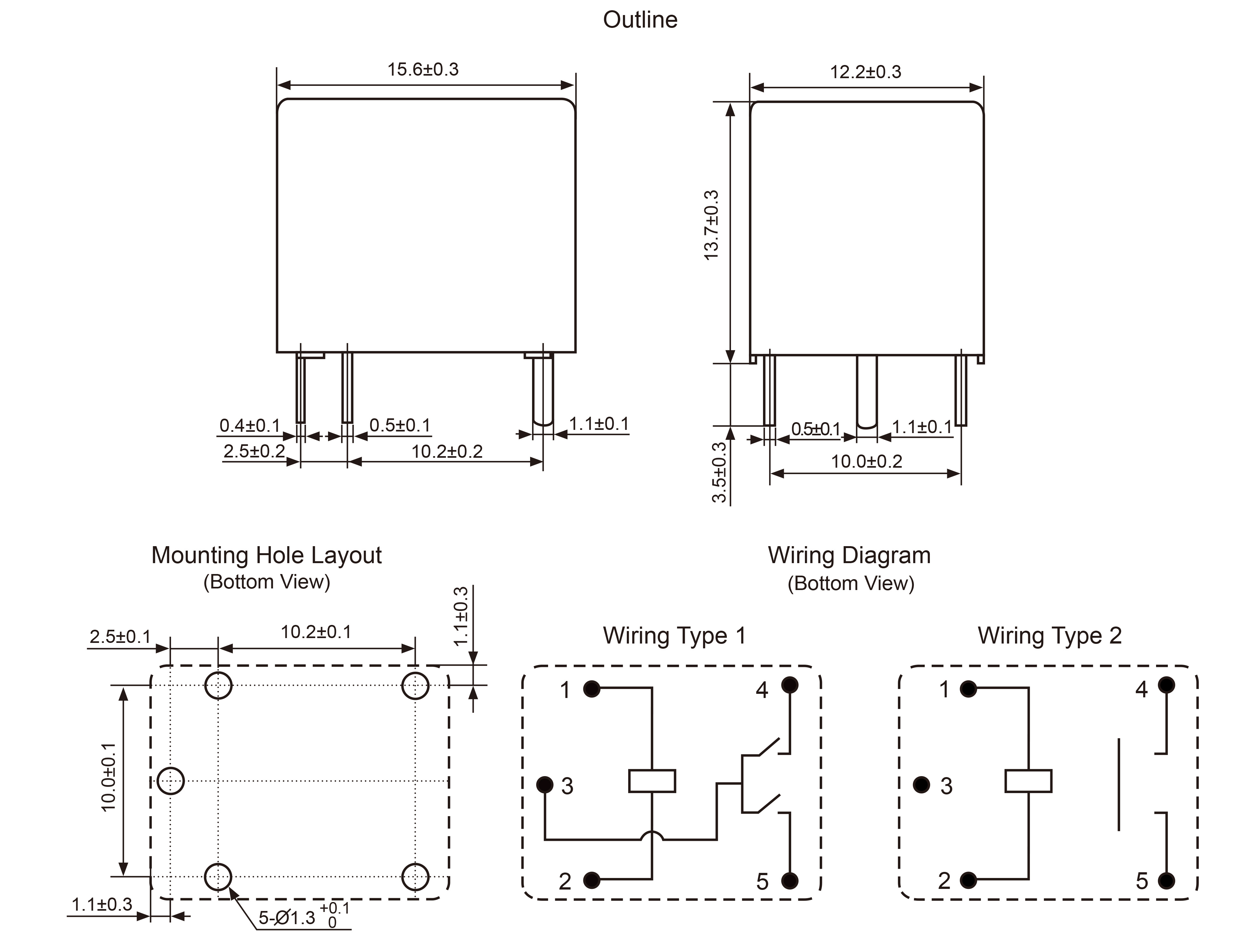

- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications

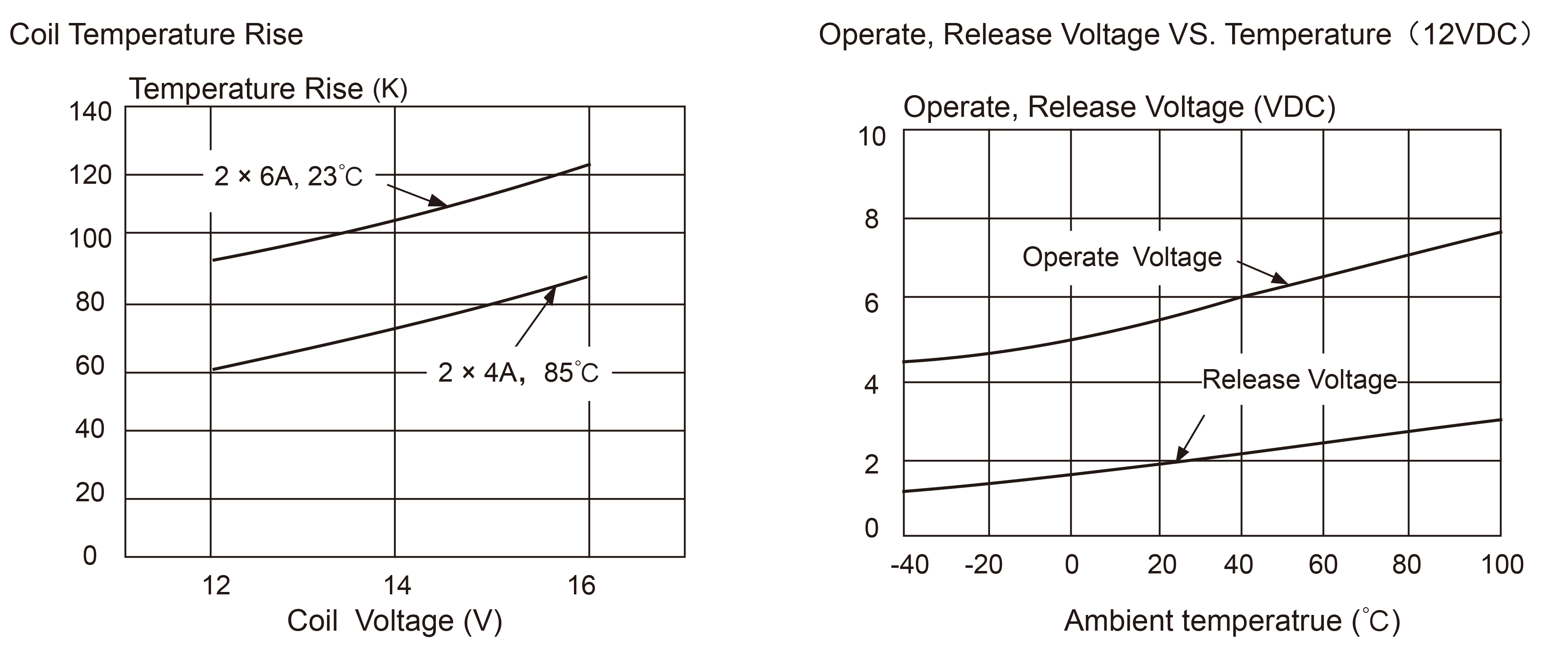

- Characteristic curve
- Coil Specification Table
-
Authentication
- Commodity name: CMA55
- Commodity ID: CMA55
- 触点形式: Double N.O. Contact
- 触点负载: 12V: 2×6A 13.5VDC resistive 24V: 2×5A 28VDC resistive
- 线圈功率: 1.0W
small relay Dimensions: 15.6×12.2×13.7(mm) bridge type moving contact Application: anti-theft device, car light control
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
Double N.O. Contact
Contact Material
Ag Alloy
Contact Rating
12V: 2×6A 13.5VDCResistive
24V: 2 × 5A 28VDC Resistive
Contact Resistance
Max. 100mΩ (6VDC 1A)
Load
Max.Continuous current
2×10A (23C,1h)
Max. Switching Current
2×10A
Min. Switching Load
6VDC 1A
Life
Electrical
100,000 operations
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
1.0W
GENERAL DATA
Insulation Resistance
Min 100MΩ 500VDC
Dielectric Strength
Between open contacts
550VAC, 1min
Between coil and contacts
550VAC, 1min
Operate Time
Max. 10ms
Release Time
Max. 5ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH, +40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 6.0g
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton Size
Length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
CMA55
25 pcs/tube
371×229×146
1000/box
5.7
6.9
-
Characteristic curve
- Coil Specification Table
- Authentication
- Naming rules
- Specifications
- Outline, Wiring, Installation Hole Diagram
- Product Packaging Specifications
- Characteristic curve
- Coil Specification Table
-
- Commodity name: CMA55
- Commodity ID: CMA55
- 触点形式: Double N.O. Contact
- 触点负载: 12V: 2×6A 13.5VDC resistive 24V: 2×5A 28VDC resistive
- 线圈功率: 1.0W
small relay Dimensions: 15.6×12.2×13.7(mm) bridge type moving contact Application: anti-theft device, car light control
-
Naming rules
-
Specifications
CONTACT DATA
Contact Form
Double N.O. Contact
Contact Material
Ag Alloy
Contact Rating
12V: 2×6A 13.5VDCResistive
24V: 2 × 5A 28VDC Resistive
Contact Resistance
Max. 100mΩ (6VDC 1A)
Load
Max.Continuous current
2×10A (23C,1h)
Max. Switching Current
2×10A
Min. Switching Load
6VDC 1A
Life
Electrical
100,000 operations
Mechanical
10,000,000 operations
COIL DATA
Nominal Coil Power
1.0W
GENERAL DATA
Insulation Resistance
Min 100MΩ 500VDC
Dielectric Strength
Between open contacts
550VAC, 1min
Between coil and contacts
550VAC, 1min
Operate Time
Max. 10ms
Release Time
Max. 5ms
Operating Temperature
-40C to +85C
Humidity
35~95%RH, +40C
Shock Resistance
Endurance
1,000m/s
Misoperation
100m/s
Vibration Resistance
Endurance
10~55Hz, 1.5mm double amplitude
Misoperation
10~55Hz, 1.5mm double amplitude
Weight
Approximately 6.0g
-
Outline, Wiring, Installation Hole Diagram
-
Product Packaging Specifications
Product number
Inner packing
Carton Size
Length × width × height (mm)
Total quantity (only)
Net weight(Kg)
Gross weight (Kg)
CMA55
25 pcs/tube
371×229×146
1000/box
5.7
6.9
-
Characteristic curve
